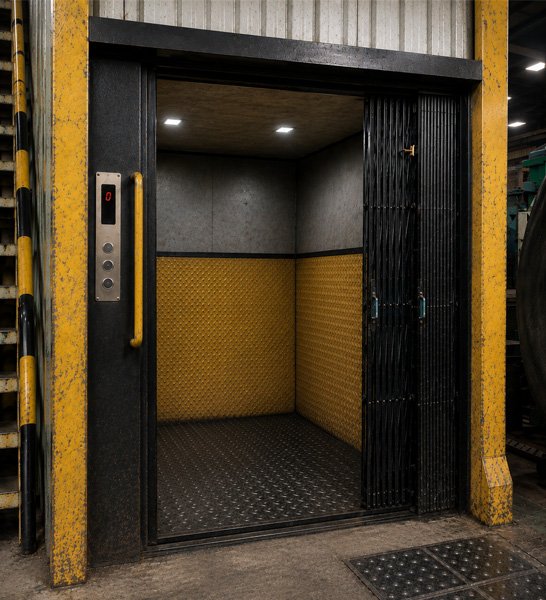

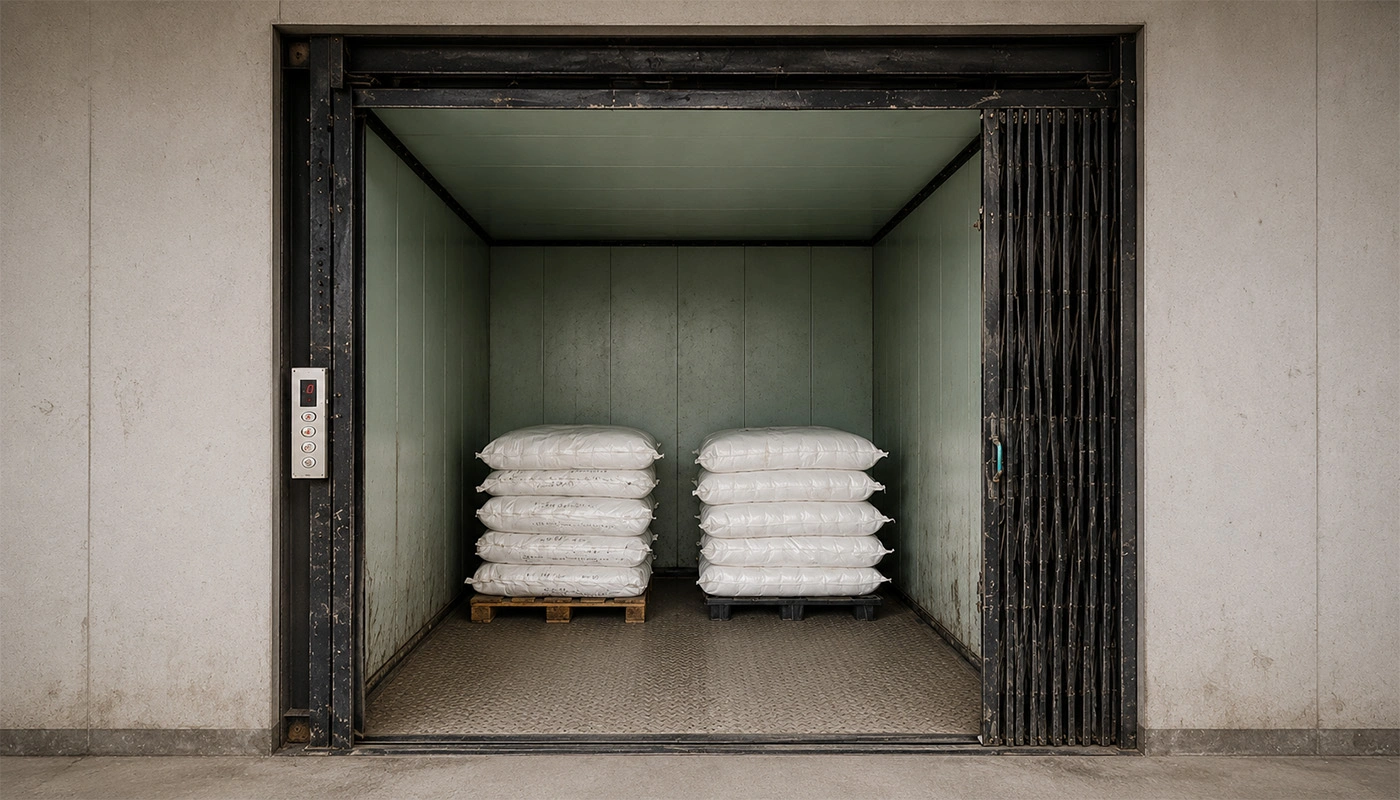

Both Freight Elevators and Goods Lifts are used for moving goods up and down. They are generally designed for heavier and larger loads and is best suited for industrial needs.

A Hydraulic Goods Lift operates using hydraulic cylinder and power pack.

In this system, oil is pumped into a cylinder with the help of a power pack, which pushes a piston upwards, causing the cabin to move up. When the oil is released, the cabin comes down. This type of lift is excellent for moving heavy loads quickly and easily. We offer options like Platform Lifts and Wall-Mounted Lifts in this category.

An Electric Goods Lift runs on electricity and is great for moving even very heavy goods quickly. They are reliable and convenient to use. Rachna Elevator & Cranes offers Electric Goods Lifts with various options like Platform Lifts and Wall-Mounted Lifts, which can be customized to meet your specific needs.

Yes, a Goods Lift can be a great addition to a home. It helps in moving items up and down within the house. We have several options for Home Goods Lifts, including Hydraulic Lifts, Electric Lifts, and Wall-Mounted Lifts, all of which can be tailored to suit your home's requirements.

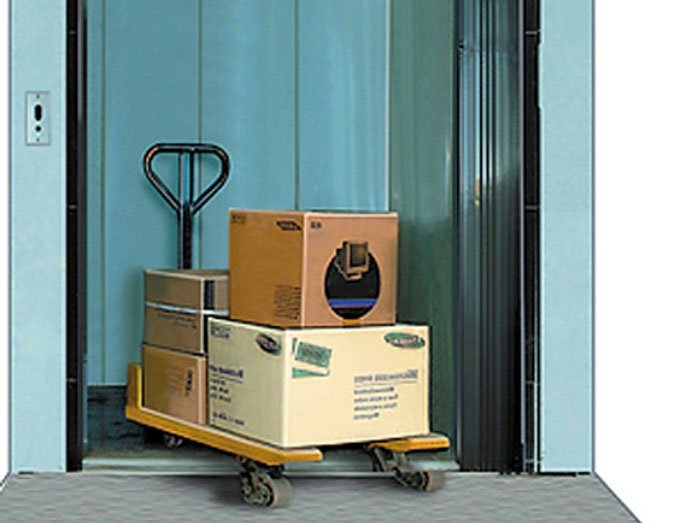

An Industrial Lift is essential for businesses to move goods quickly and safely from one place to another. It is ideal for warehouses, factories, and offices. Our Industrial Lifts include Hydraulic goods Lifts, Electric goods Lifts, and Cargo Lifts, all equipped with the latest technology.

Rachna Elevator & Cranes is one of the top Goods Lift Manufacturers in India. Our lifts, such as Hydraulic Goods Lifts, Electric Goods Lifts, and Freight Elevators, come with high quality and the latest technology. Additionally, we provide excellent customer service.

Our Freight Elevators have several special features, including:

Digital Car Position Indicator shows cabin position on all the floors.

UP/DN Indicator shown the direction in which cabin is moving.

Voltage Protection: Upper and lower limit can be defined in each phase (220V) instead of consolidated 3 phase (440 V). This means maximum safety.

• Over & Under Load protection can be defined by ampere setting in individual phase.
• Phase Preventer saves electrical parts when the single or two phase is out of supply.
• Phase Sequence Corrector / Auto Phase Changer automatically corrects the phase polarity when phase get change.
• MFLS (Magnetic Floor and Final Sensing with the help of REED sensor) latest upgrade of limit switch (old & traditional technology). Though Reed sensor works on sensing technology instead of physical contact, their life is very high. Also, accuracy of the same is unmatched.
• Special M.C.B. developed for Rachna Elevator & Cranes to provide final safety in case of malfunctioning in the panel.
• Buffer is provided in the pit to cure the cabin from damage.

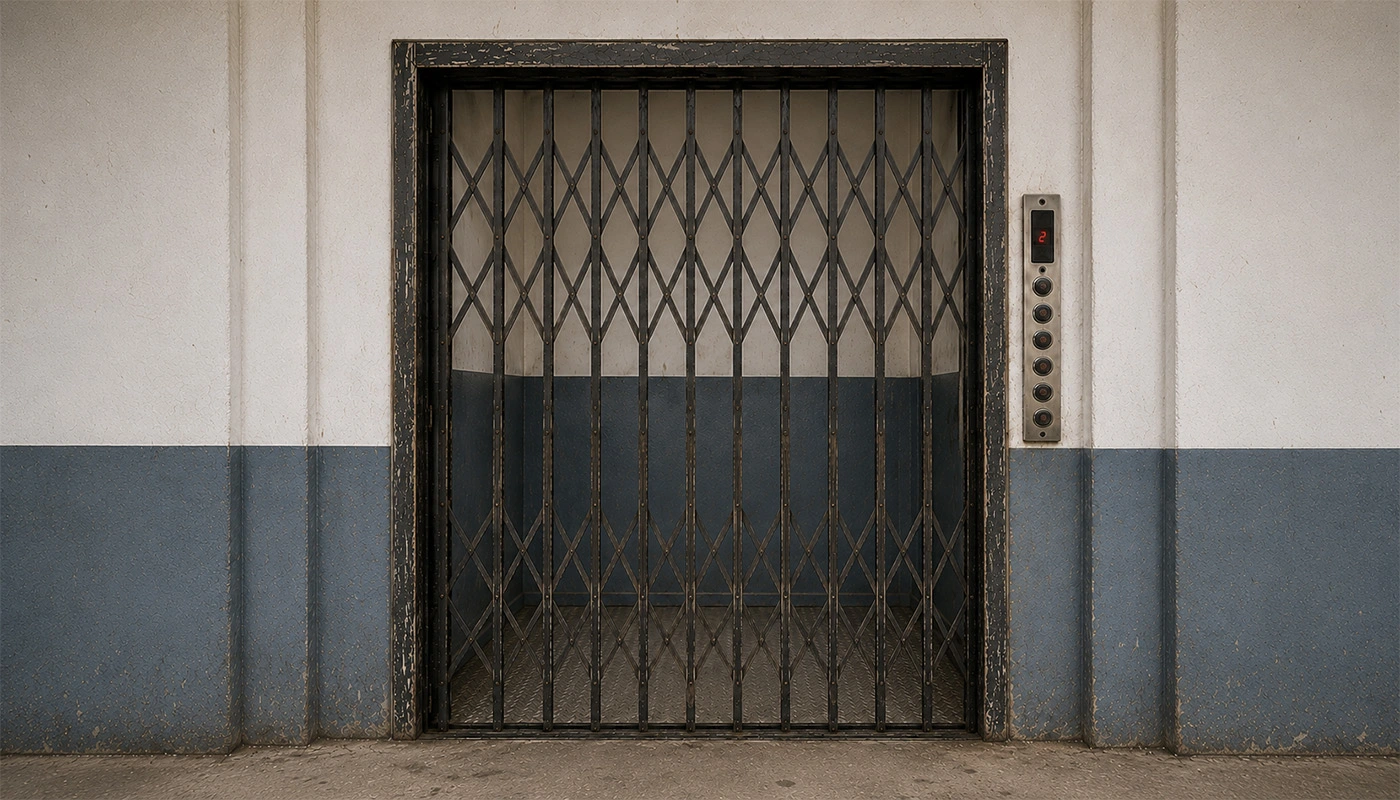

• Doors: Collapsible.
• Maximum opening after the bunch.
• Emergency Stop button is provided on all floor to stop the cabin in case of emergency.
• Electrical Mechanical Door Lock: -
  • Door will not open during the lift movement.
  • Door will open only on the floor where the cabin land.
  • Until all the gates were closed lift will not move.

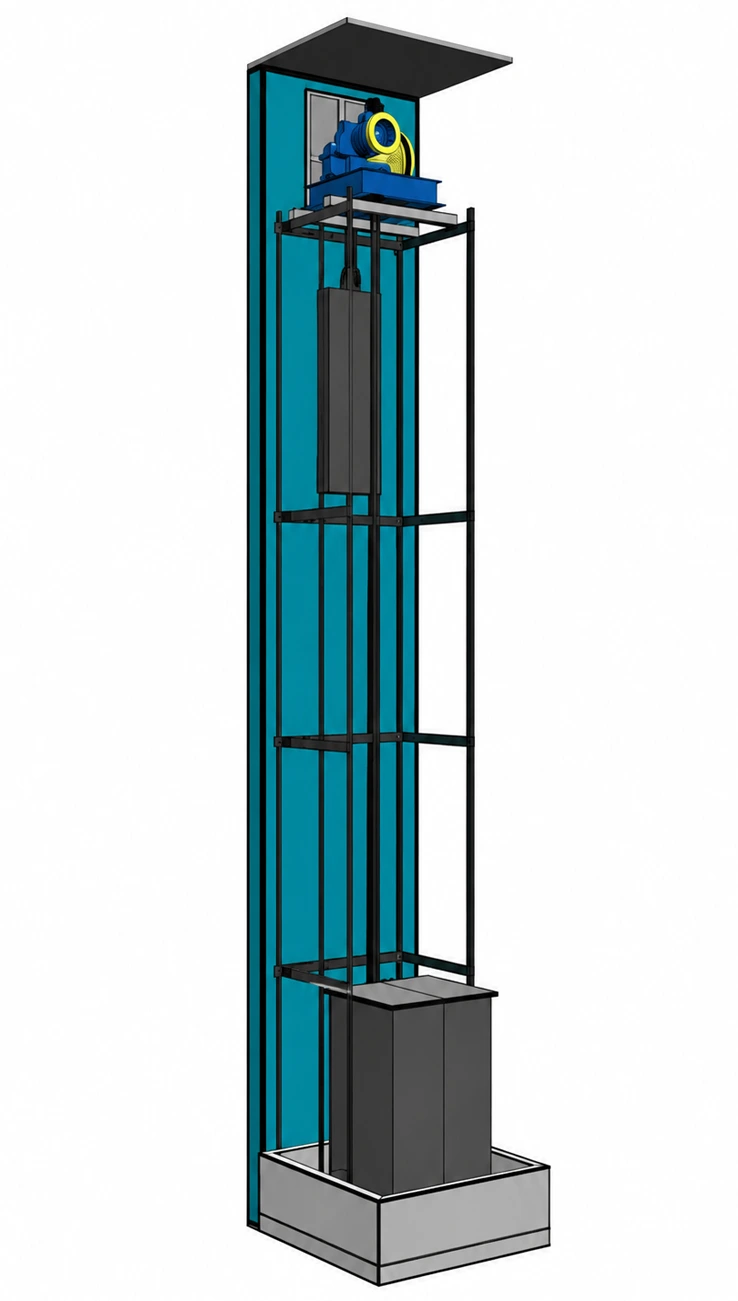

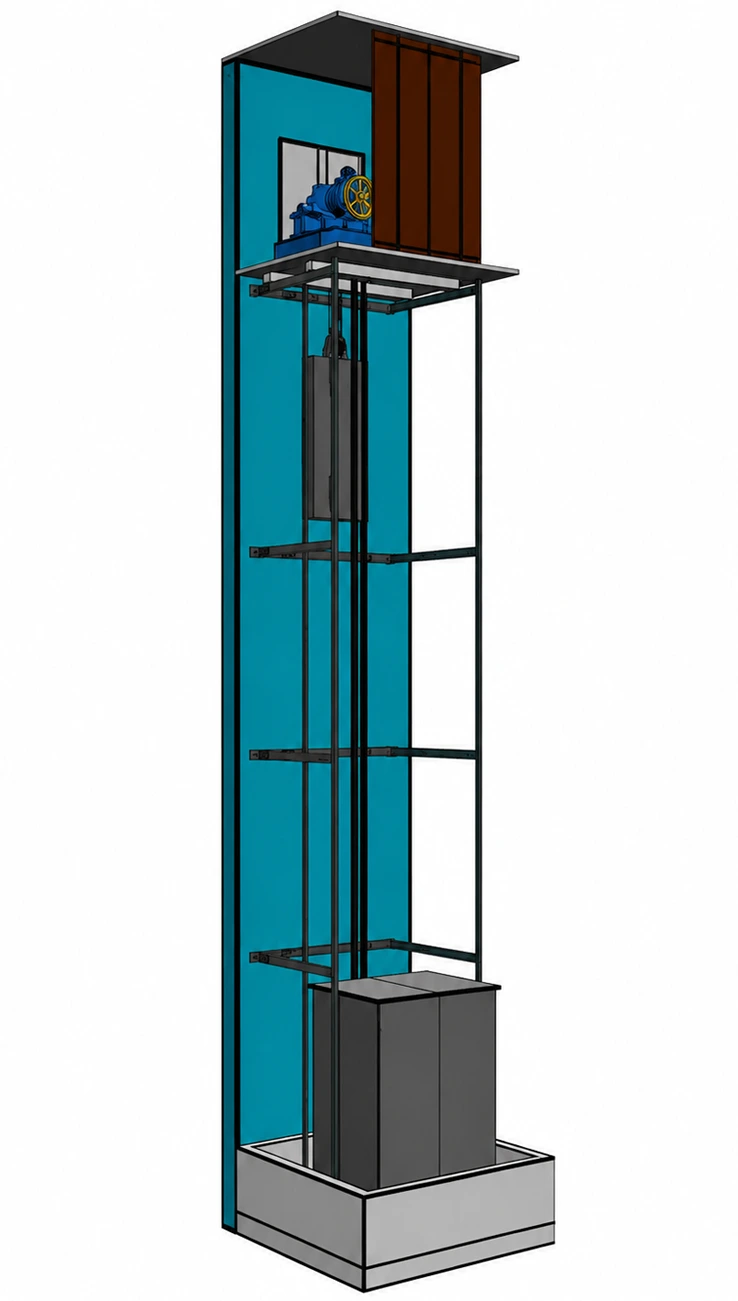

• Over Speed Governor stop the lift in case of free fall of the cabin by applying mechanical brake / safety dogs. This comes with counterweight.

If there is no shaft in the building, we can install an Elevator by fabricating a structure. This structure can be covered with GP Sheet, Glass, Fiber, or Wire Mesh. It can be installed both indoors and outdoors, saving time and cost.

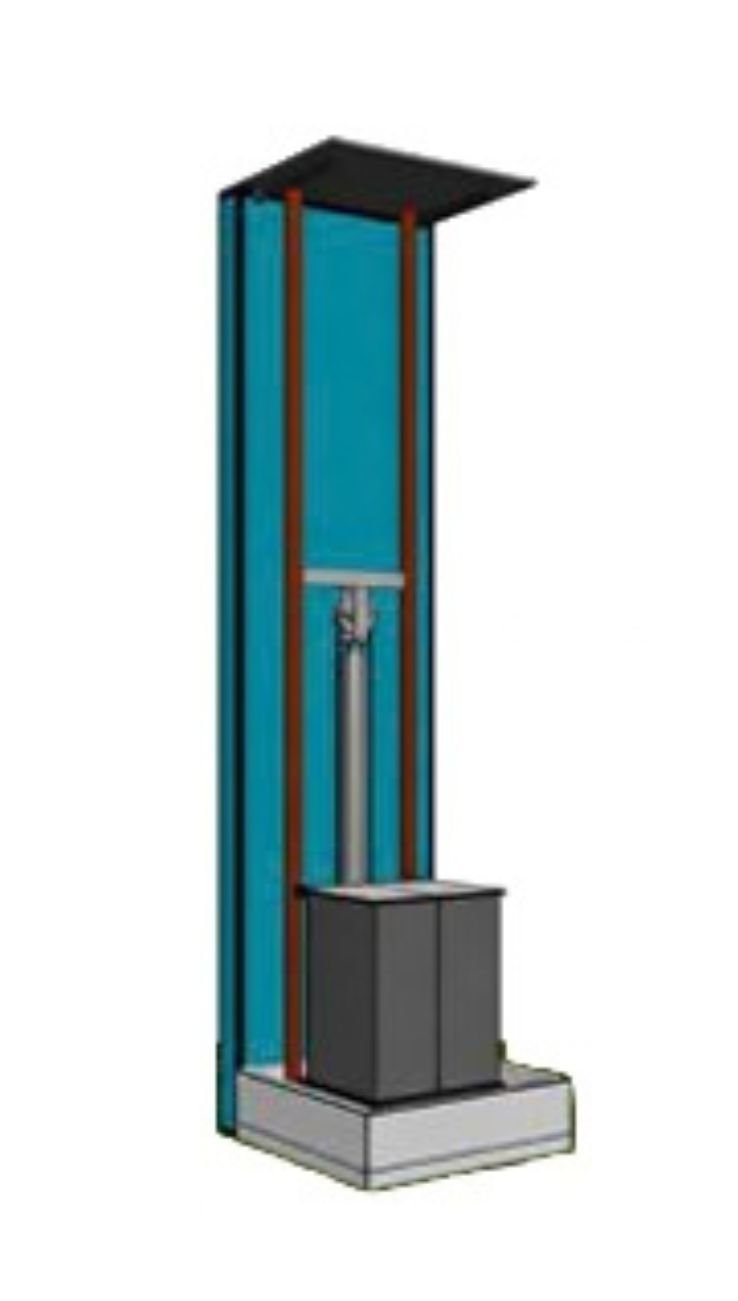

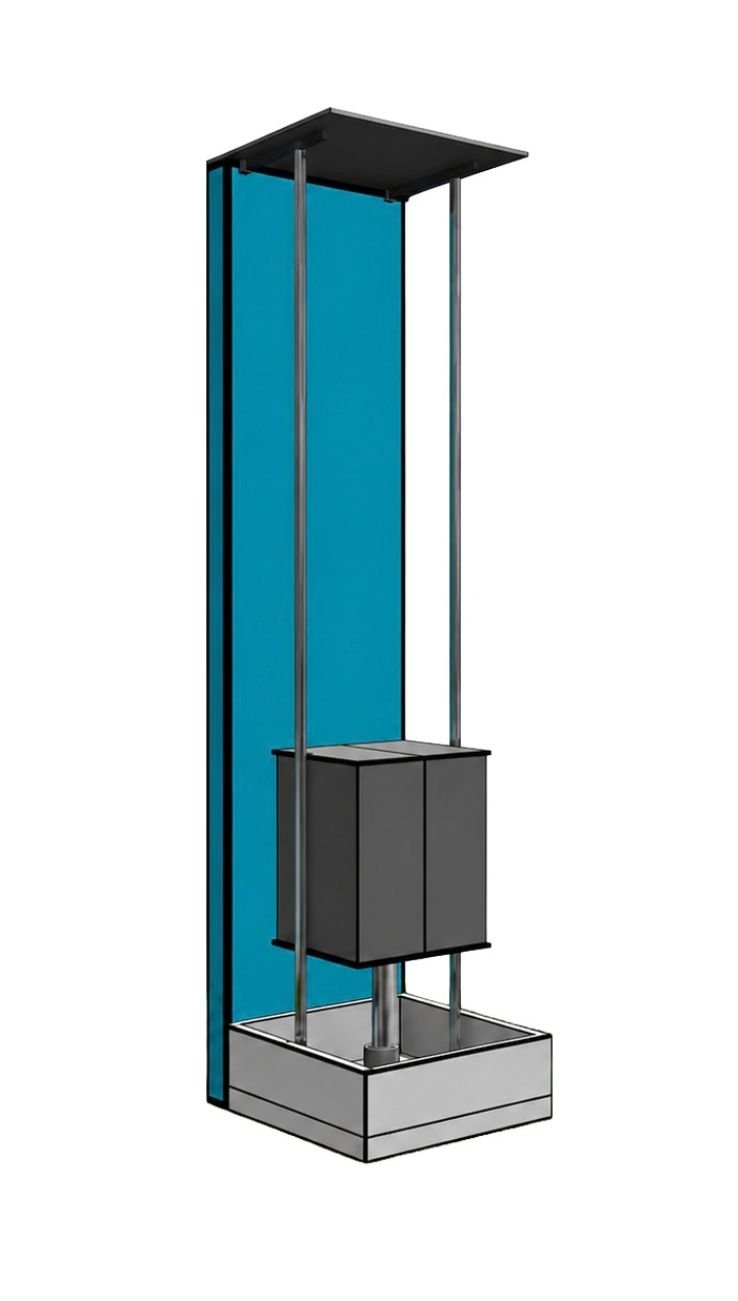

A Hydraulic Freight Elevator Hole Less Type is a safe technology. In this type, the cylinder is installed alongside the wall, and the power pack pushes the oil upwards, causing the cabin to rise. It consumes less electricity and is easy to maintain. Also, it doesn't require a heavy supporting structure.
